Transformers

Multi-Tap Transformers
Construction: 304 Stainless Steel

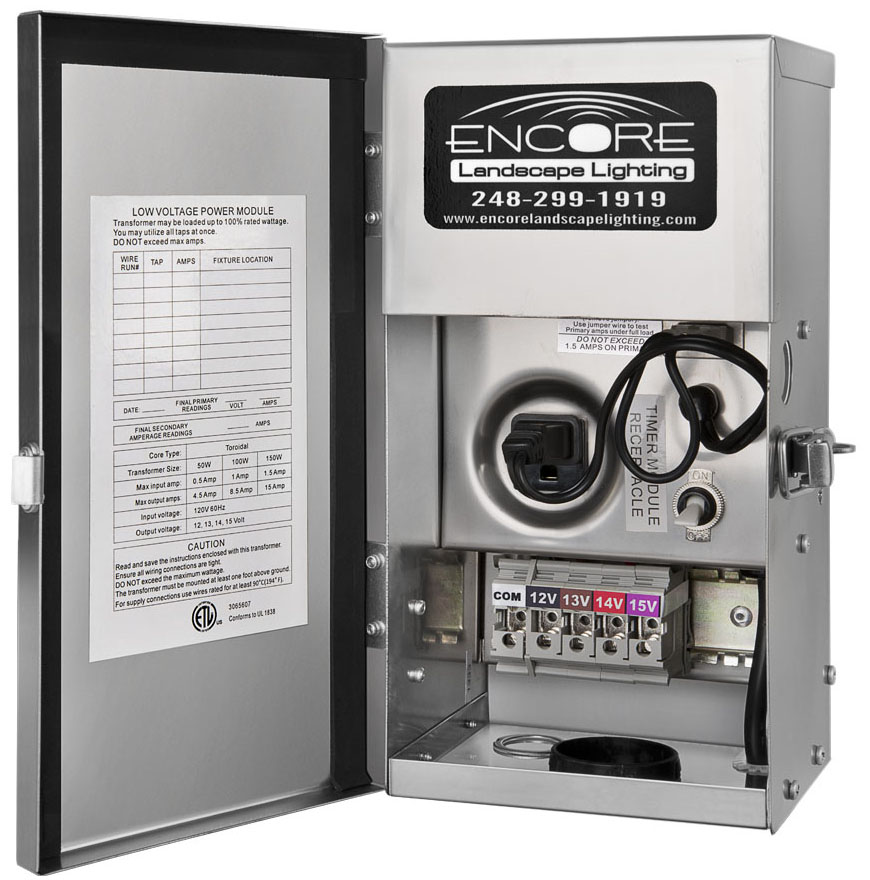

Taps: 12-15 Volt Transformers are 12,13, 14, & 15

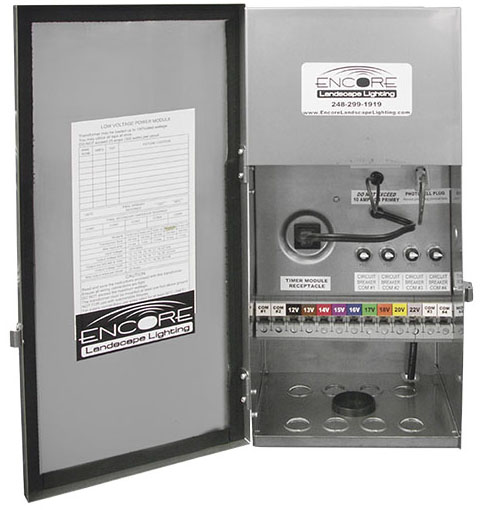

Taps: 12-22 Volt Transformers are 12, 13, 14, 15, 16, 17, 18, 20, & 22
Primary Protection: Automatic thermal reset breaker
Secondary Protection: 25 amp, 300 watt magnetic breaker with reset switch
Toroidal Core: Epoxy sealed core which is silent and up to 10% more efficient, runs much cooler than laminated cores
Terminal: Extra large 125 amp terminal blocks, holds (8) 12/2 wire
Internal Wiring: Non-corrosive, tin coated marine grade, dedicated current loop to measure primary amperage.
Timer Receptacle: Standard receptacle for plug and play options
Photo Cell Plug: Dedicated plug for easy installed of photo cell
Child Proof Safety: Lockable lached door to prevent access

Model
Volts
Wattage
Max Amps
Dimensions
Weight
TR-75SS-15
12, 13, 14, 15
75 watts
.625 amps
6½" L x 3¾" W x 4¼" D
8 lbs
TR-150SS-15
12, 13, 14, 15
150 watts
1.25 amps
10½" L x 5¾" W x 4½" D
13 lbs
TR-300SS-15
12, 13, 14, 15
300 watts
2.5 amps
16¼" L x 6" W x 5½" D
24 lbs
TR-600SS-15
12, 13, 14, 15
600 watts
5.0 amps
16¼" L x 6" W x 5½" D
30 lbs
TR-300SS-22
12, 13, 14, 15, 16, 17, 18, 22
300 watts
2.5 amps
16¼" L x 6" W x 5½" D
26 lbs
TR-600SS-22
12, 13, 14, 15, 16, 17, 18, 22
600 watts
5.0 amps
16¼" L x 6" W x 5½" D
32 lbs
TR-900SS-22
12, 13, 14, 15, 16, 17, 18, 20, 22
900 watts
7.5 amps
17¼" L x 7¾" W x 7" D
48 lbs
TR-1200SS-22
12, 13, 14, 15, 16, 17, 18, 20, 22
1200 watts
10 amps
17¼" L x 7¾" W x 7" D
51 lbs
